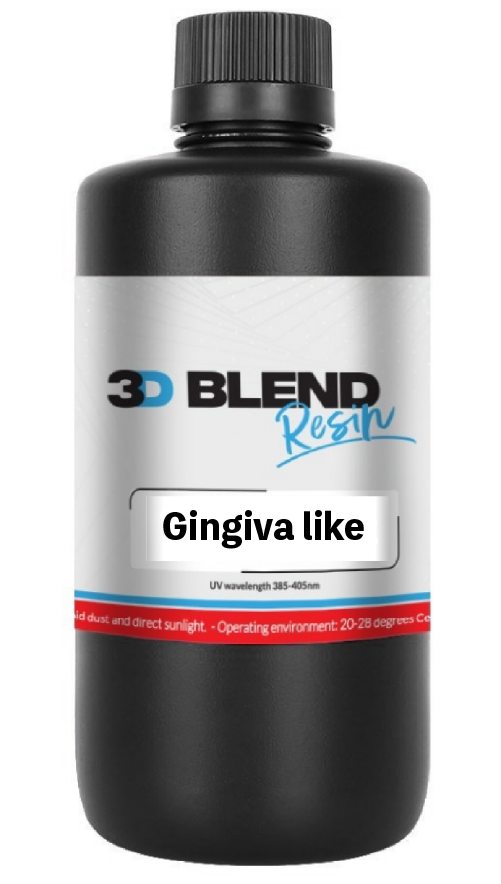

3D Blend Gingiva Mask Resin (500g)

Description

3D Blend Gingiva Mask Resin prints soft, elastic gum masks for implant models, so technicians can check emergence profiles and remove the gingiva to reach the analogs.

It is rubber-soft (50–60 Shore A) and stretches over 100%, so masks seat and unseat repeatedly without tearing.

Key features

• Soft and elastic — 50–60 Shore A
• Very high elongation — 110% at break
• Realistic gum pink
• Accurate fit on printed implant models

Applications

• Removable gingiva masks for implant models
• Emergence profile checks
• Soft-tissue simulation on study models

Product information

Item	Detail
Product	3D Blend Gingiva Mask Resin
Type	Dental gingiva mask resin (GC series)
Net weight	500 g
Wavelength	385–405 nm
Compatible printers	LCD, MSLA and DLP resin printers (Elegoo, Anycubic, Phrozen, Creality, Uniformation, Bambu and others)

Technical data

Property	Value
Hardness	50–60 Shore A
Tensile strength	1.3 MPa
Elongation at break	110%
Viscosity (25 °C)	350–550 mPa·s
Density	1.05–1.25 g/cm³

Manufacturer test data (ASTM D638 / D790 / D256 / D2240, post-cured at 405 nm, 23 °C). Values ±10%.

How to print

1. Bring resin and room to 20–30 °C — cold resin is thick and causes failed prints
2. Shake the bottle for 1–2 minutes (or roll it) until no sediment remains
3. Check the FEP/ACF film for holes and clean the build plate; level the plate if needed
4. Pour resin into the vat up to the MAX line
5. In your slicer (Chitubox, Lychee, etc.) enter the print settings below, orient parts at 30–45° and add supports
6. Hollow large models (2–3 mm wall) and add drain holes to save resin and avoid suction
7. Run an exposure test (e.g. RERF or validation matrix) the first time you use this resin on your printer
8. Print, then let the plate drip for 10–15 min before removing parts

Recommended print settings (UV exposure)

Setting	Starting value
Layer height	0.05 mm
Bottom layers	4–6
Lift distance	increase by 20–30% over your standard setting
Lift speed	60–80 mm/min
Retract speed	150 mm/min
Wavelength	385–410 nm
Bottom exposure	20–30 s
Layer exposure	4–8 s

Starting values tested on a 6.6″ mono LCD (3500–4500 µW/cm²). Adjust for your printer’s light power: a stronger screen needs shorter exposure; a weaker or ageing screen needs longer.

Washing

1. Clean in fresh IPA (95%+), ideally ultrasonic: 1–2 min first bath, 2–3 min second bath
2. Blow dry with an air gun immediately after washing
3. Finish and polish according to standard laboratory practice
4. Check fit on the model before clinical use

UV post-curing (polymerization)

Parameter	Value
Wavelength	405 nm
Dental curing unit (≈200 mW/cm²)	30 s per side, in water
Standard curing station (40–60 W)	2–3 min
Note	Short cure keeps the mask soft and elastic

Storage & safety

• Store sealed in the original bottle at 15–30 °C, away from sunlight, heat sources and moisture
• Shake or roll the bottle for 1–2 minutes before every print — pigments and fillers settle
• Shelf life: 24 months unopened (18 months for dental resins)
• Wear nitrile gloves and safety glasses; work in a ventilated room
• Skin contact: wash with soap and water. Eye contact: rinse 15 min and seek medical advice
• Dispose of uncured resin and contaminated IPA as chemical waste, never in the drain

For professional dental use only, by trained laboratory and clinical staff. Validate settings on your own printer and follow your local regulations for dental devices.

In the box

1 × 3D Blend Gingiva Mask Resin, 500 g bottle.
