Description

Product Description

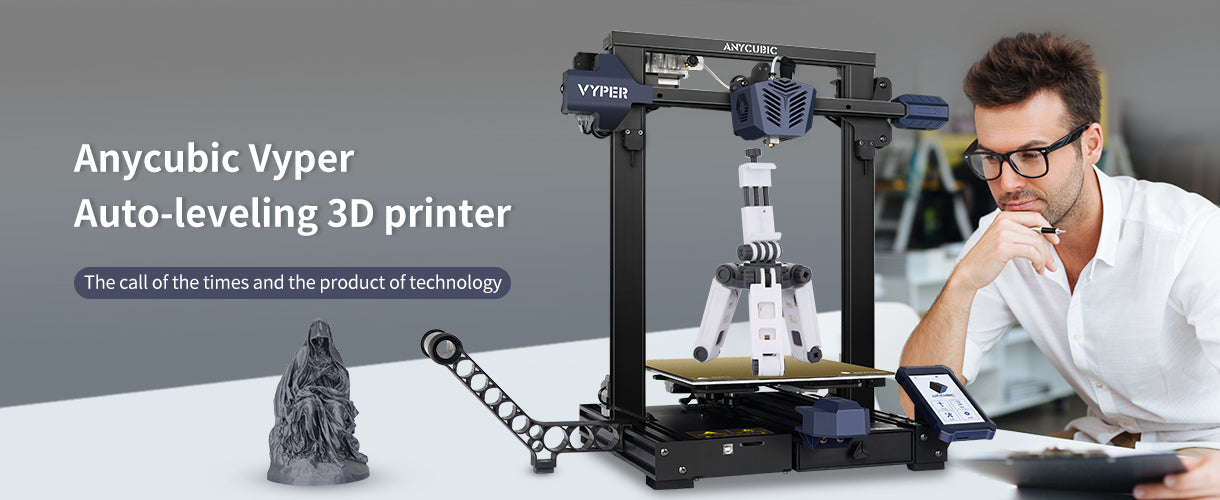

Anycubic Vyper–Equipped with a new 32-bit motherboard and a high-performance Cortex -M3 architecture main control chip, Vyper features faster computing speed and smoother system. The integration of TMC2209 silent driver makes the motherboard have both silent printing and precise voltage output control, which ensures a more accurate and silent printing.

Auto Leveling: Realizing one-touch leveling and printing

Fast Assembly: Integrated structure

Large-size Touch Screen: New UI, Easy to operate.

Stepper Drivers: Silent printing.

Technical Specifications: ● Printing Technology: FDM (Fused Deposition Modeling); ● Build Volume: 245mm(L)×245(W)×260mm(H); ● Print resolution : ±0.1mm; ● Positioning accuracy: X/Y 0.0125mm; Z 0.002mm; ● Extruder number: Single; Nozzle diameter: 0.4 mm; ● Print Speed: ＜180mm/s (recommended 80-100mm/s); ● Support filaments: PLA, TPU, ABS, PETG, Wood; ● Ambient Operating Temperature: 8°C – 40°C; ● Operational Nozzle Temperature: max ≤260°C; ● Operational Hot Bed Temperature: max ≤110°C; ● Slicing Software: Cura; Output Formats: GCode; ● Input Formats: .STL, .OBJ, .AMF; ● Connection mode: Trans-flash Card; USB cable(expert users only); ● Input voltage: 100V/240V AC, 60/50Hz; ● Output voltage: 24V/14.6A（350W）; ● Machine size: 508mm×457mm×516mm; ● Package Weight: Machine weight: ~10kg

Auto Leveling: Don’t need manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.Precise pressure strain gauge,16-point precise leveling

High-precision double screw: The machine’s double screw runs synchronously, thus bringing more stable operation and smaller zeroing error

Double photoelectric limit: The machine can automatically compensate the difference of the hot bed to make Z-axis zeroing more accurate.

Spring steel magnetic platform: High toughness; Scratch-resistant coating; Easy model removal. It is compatible with a wide range of filaments

Dual cooling Fans: The printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The printing speed is faster which can reach 100mm/s.

Double-gear extrusion system: The extrusion system is able to reduce the chances of filament tangle and is compatible with PLA & flexible filaments. Strong extrusion force; Path optimization.

Small body and big size: With 245 * 245 * 260mm print size, the printer can meet your endless creative needs.

4.3″ large-size touch screen: The screen features new UI interface, smooth and simple operation as well as English and Chinese switching. New UI; Large-size screen; Easy to operate.

A brand-new core: M3 chip; High-speed computing; Silent printing; 32-bit main frequency: 72M; 8-bit main frequency: 16M.

Parts List

Display Screen

Filament

Filament-holder

Nozzle

Power cord

Screw(M5)-*14 3pcs

Screw(M5)-*45 4pcs

SD Card

Service Card

Tool set

USB Cable

SD Card-Reader

User Manual

	i3 Mega	i3 Mega S	4Max Pro
Printing Technology	FDM (Fused Deposition Modeling)	FDM (Fused Deposition Modeling)	FDM (Fused Deposition Modeling)
Build Area	8.27”x8.27”x8.07” (210x210x205mm)	8.27”x8.27”x8.07” (210x210x205mm)	10.63”x8.07”x8.07” (270x205x205mm)
Print Materials	PLA, ABS, HIPS, PETG, Wood	PLA, ABS, HIPS, PETG, Wood and TPU	PLA, ABS, HIPS, PETG, Wood and TPU
Titan Extruder & Suspended Filament Rack	✗	✔	✔

i3 Mega

FDM (Fused Deposition Modeling)

Build Area: 210x210x205mm

Filament: PLA, ABS, HIPS, PETG,
Wood

Mega Extruder
None Suspended Filament Rack
i3 Mega S

FDM (Fused Deposition Modeling)

Build Area: 210x210x205mm

Filament: PLA, ABS, HIPS, PETG,
Wood and TPU

Titan Extruder
Suspended Filament Rack
4Max Pro

FDM (Fused Deposition Modeling)

Build Area: 270x205x205mm

Filament: PLA, ABS, HIPS, PETG,
Wood and TPU

Titan Extruder
Suspended Filament Rack
