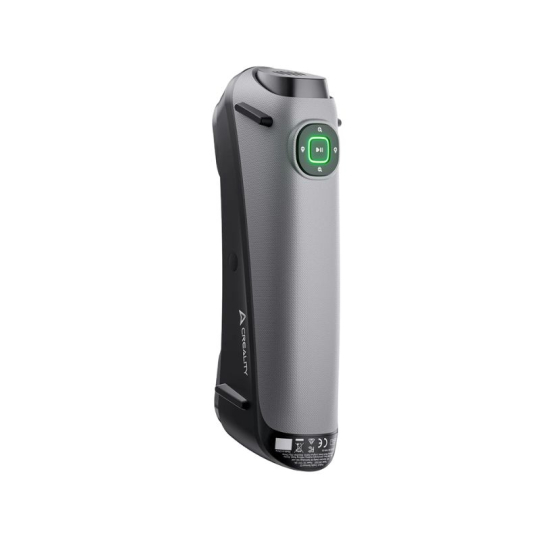

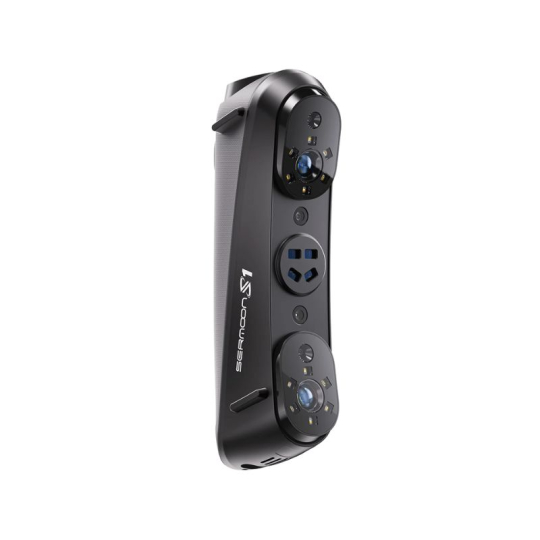

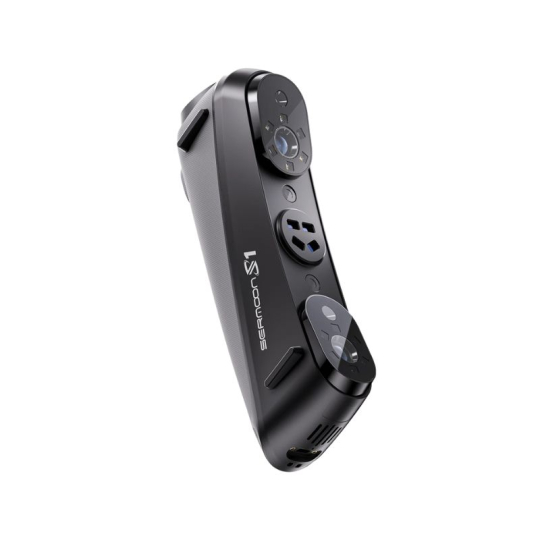

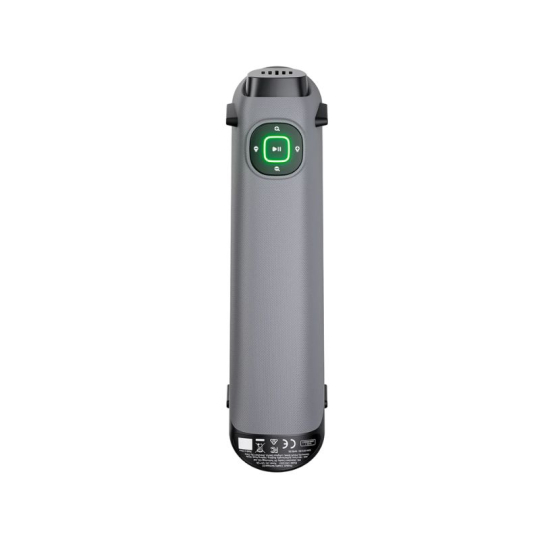

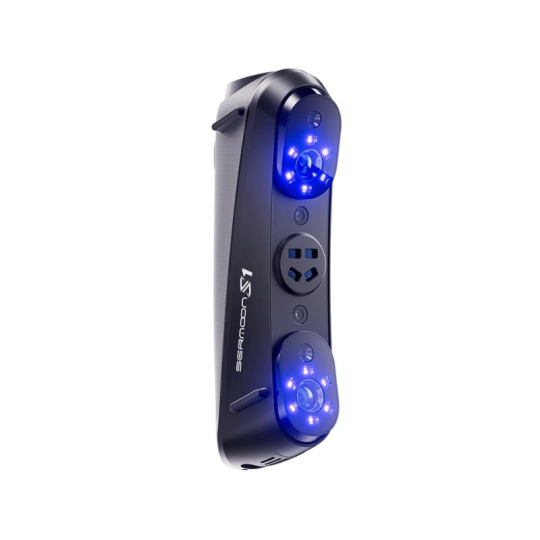

Creality Sermoon S1 3D Scanner

The Creality Sermoon S1 is a versatile and fast 3D scanner, capable of handling a wide range of objects, from the smallest to the largest, without requiring any special preparation. Its different laser modes allow it to ensure a high level of precision and to adapt to each type of part.

It captures every detail faithfully and is ideal for design, engineering, product design or even historical preservation.

The advantages of the Sermoon S1 Creality scanner

The Creality Sermoon S1 stands out for its many advantages: a precision of 0,02 mm for detailed models, a high scanning speed of up to 90 FPS and an extended scan range from 5 mm³ up to 4 m³.

Its various laser technologies allow it to easily scan black or metallic surfaces as well as objects present outdoors under strong light. Combined with the software Creality Scan 4.0Creality Sermoon S1: versatility and precision

? Single-line blue laser

The Sermoon S1 uses a single-line blue laser specially designed to explore hard-to-reach areas. Thanks to its optimised optical system, it manages to scan with great precision the

deep cavities and the very fine gaps This technology guarantees a faithful reproduction of the smallest details, even on parts with complex design and geometry..

? 7 parallel blue laser lines

When using the 7 parallel line blue laser mode, the Sermoon S1 allows fast and detailed capture of somewhat complex surfaces. It then records up to

756,000 points per second It can be used at a distance ranging from? 34 crossed blue laser lines 0,1 mm.

The 34 crossed lines mode is dedicated to the rapid scanning of medium to large objects. It greatly optimises productivity by obtaining a good quality scan in a short time. 150 à 400 mmThis mode allows reaching an acquisition speed of

1,428,000 points per second

? NIR structured light

This mode allows reaching an acquisition speed of 1,428,000 points per second, at a distance ranging from 200 à 600 mm. Perfect for efficiently scanning large volumes without losing precision.

? NIR structured light

In NIR structured light mode, the Sermoon S1 performs a fast scan and without markersIts short and long-range infrared technology allows it to reach an exceptional scan rate of up to

4,600,000 points per second A high-precision scannerMeets the requirements of metrological applications for remarkable accuracy.

Consistency and reliability of measurements on objects of all sizes, even large format.

Up to 90 images/sec (single & parallel line) · 70 FPS in cross-line mode.

?? High outdoor performance

? Scanning range	From 5×5×5 mm à 4000×4000×4000 mm Single/cross laser up to
· 7 lines up to	— total reliability in full sunlight. 100 000 lux ? Dark & metallic surfaces 50 000 lux Direct scan without matte spray, without prior treatment — simplified workflow.
Temperature compensation AI + One-Shot technology for stable images despite manual movements.	The software
? Stabilisation intelligente	offers professional digitization tools with an intuitive interface. It integrates:

Logiciel CrealityScan 4.0

GPU acceleration CrealityScan 4.0 for digitization up to 90 FPS and 2× faster laser line fusion

• GPU acceleration for scanning up to 90 FPS and 2× faster laser line merging
• 3D animations and interactive tools for simplified handling
• Direct integration and smooth alignment of scan points
• AI repair and enhancement of scans for smooth and accurate images
• Export vers QuickSurface, Geomagic Design X and all major CAD/CAM software

Our review of the Creality Sermoon S1
