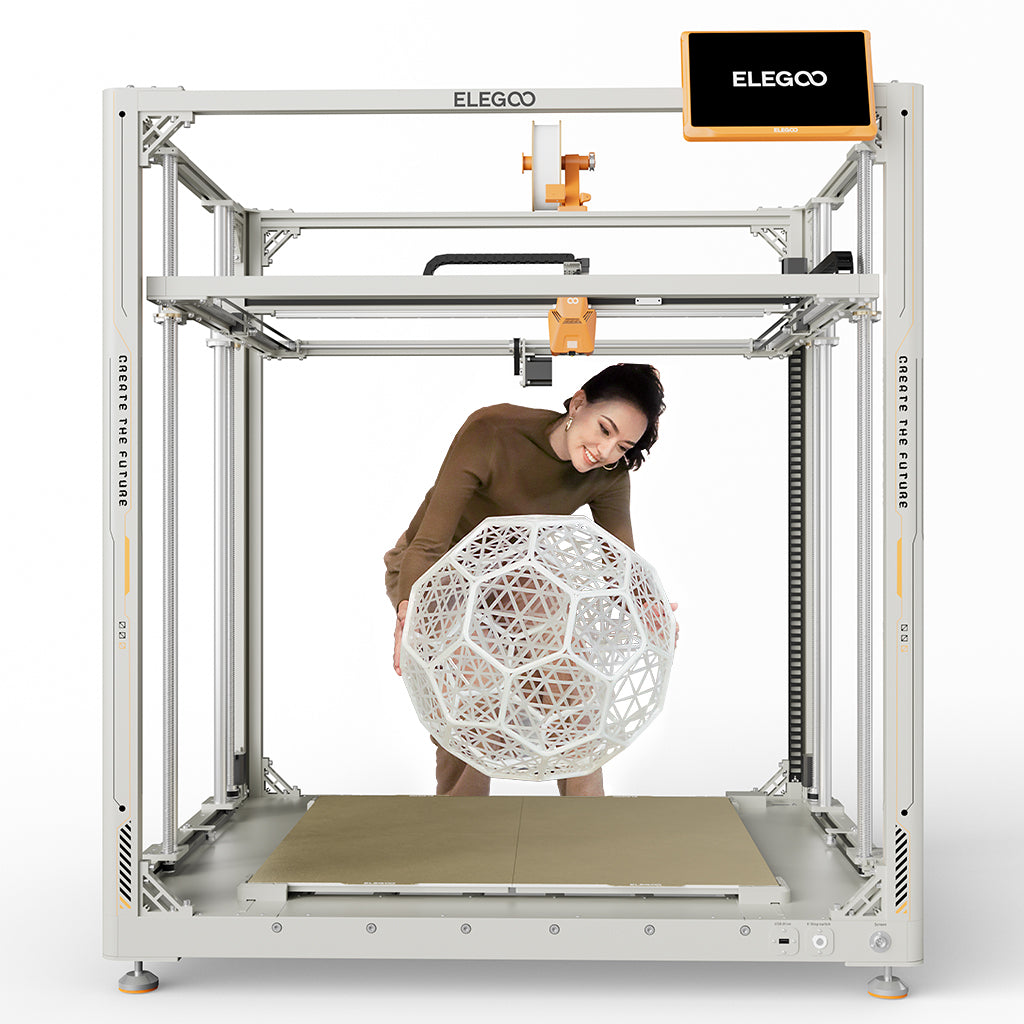

OrangeStorm Giga – Industrial-Grade Ultra-Large 3D Printer

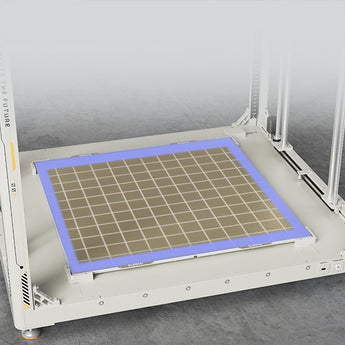

The heated bed consists of four independent (410 × 410 mm) PEI magnetic high-temperature platforms with a maximum temperature of 100 °C.

The four platforms can be heated simultaneously to reach 100 °C over the entire area in 17 minutes (ambient temperature: 25 ℃).

The platform where the model is located can also be automatically recognized and heated independently, or manually and independently controlled for increased energy efficiency.

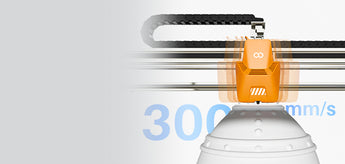

Three additional printheads can be added to the X-axis to realize simultaneous printing with four nozzles, supporting printing four of the same model, while each nozzle can be equipped with the same material and different color filament to achieve four different colored models of the same kind.

The maximum power requirement is 1,530 W. For each additional printhead, an extra 100 W is needed. Please ensure that your setup can accommodate this total power load.

Integrated body, elegant yet durable. The X-axis and Y-axis are linear guides, effectively improving printing stability and increasing lifespan. The Z-axis features an upgraded version of the Z-Axis rod to make the machine run smoothly and ensure leveling precision. Machine mounts are designed with a carbon steel round base and rubber round anti-slip pad bottom.
