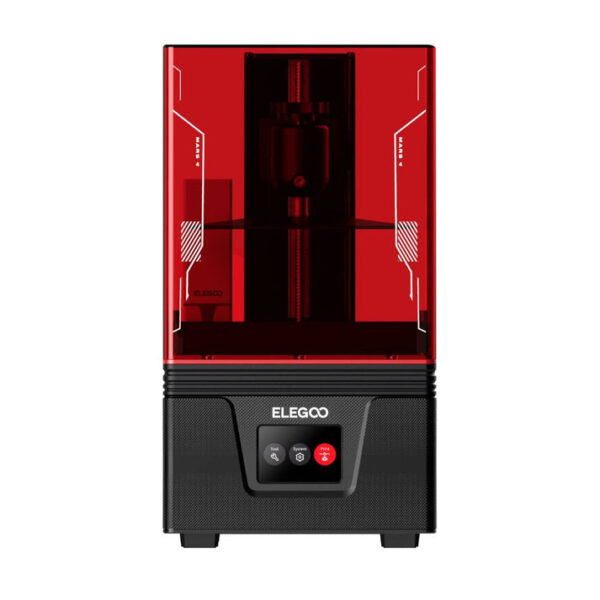

Elegoo Mars 4 Max 6K RESIN Printer

Description

COB refraction light source

The Elegoo Mars 4 is equipped with the improved technology of COB refraction which, combined withalgorithme anti-aliasing9.1-inch 6K LCD Screen



































Thanks to its

high-performance LCD screen exposure time is reducedto 1.5-3 seconds per layer, which significantly increases printing efficiency and speed up to 70 mm/h. Protective Glass The monochrome screen of the Elegoo Mars 4 Max is equipped with a

replaceable protective glass

with a hardness of 9H. This extends the screen's lifespan, makes it easier to clean and prevents the penetration of resin or any other liquid that could cause deterioration. Sandblasting Process The sandblasted build plate offers

strong adhesion

of the part and maximizes the chances of print success. Stunning Results of the part and maximizes the chances of a successful print.

Stunning results

The print speed can reach 70 mm/h while maintaining a Z-axis precision of 0.01 mm.

A stable Z-axis

The thickness of the rail significantly reduces the amplitude of vibrations and allows forensuring stability of movements on the Z-axis. This way, models have fewer layer defects and are more delicate.

Trois modes d’impression

Equipped with the intelligent slicing software Voxeldance Tango, the Mars 4 Max offers 3 print modes:
? printing in mode statique from the preset parameters
? the mode dynamique (smooth mode) adjusts the print speed in real time based on factors such as the cross-section size.
? the mode high speed also adjusts the speed throughout the print so that it finishes as quickly and efficiently as possible.

Practical working volume

The build volume of the Mars 4 Max is 195.84 x 122.4 x 150 mm.

Efficient heat dissipation

The system of double ventilation increases the cooling performance of the machine and extends its lifespan.

Wide compatibility

The GOO programming independently developed by the Elegoo brand is open source and does not restrict the use of your usual slicing software.

Air purification solutions

The chemical components of some resins cause the emission of unpleasant odors. To solve this problem and relieve many inconvenienced users, the Elegoo brand is developing a large-scale air purifier (200 x 200 x 410 mm) designed specifically for photopolymerization processes. It will be available soon and will help you create a healthy and fresh environment for your prints. And while waiting for the release of this new Elegoo Mate machine, you can continue to use the Mini air Purifier Elegoo which effectively absorb the odors emitted thanks to the high-density activated carbon they contain.
